Post by merseymale on Mar 12, 2018 22:25:33 GMT -5
(EDIT: this topic was originally a post added to a different topic. I moved it to a new thread. sumgai, 03/12/18)
Has anyone point to a diagram that has
1)Bridge x Neck
2)Bridge
3)Bridge + Neck
4)Neck
...pleAse?
All links that I see have the diagram on a defunct PhotoBucket account...
|
|
|
|
Post by sumgai on Mar 13, 2018 1:56:03 GMT -5
mm,
This forum is in the midst of rescuing older images from Photobucket's recent user-hostile actions. The image is still visible in certain threads in these forums, but without knowing the thread titles where it still works, that's not going to be easy to search on.

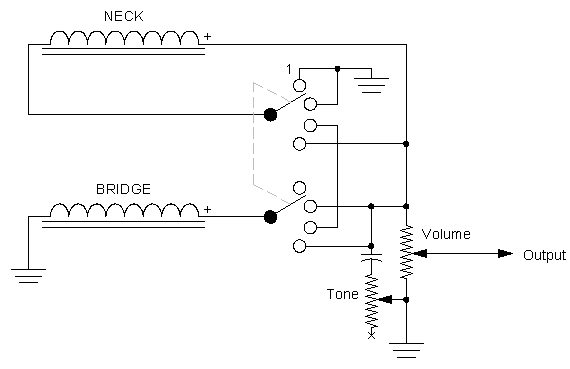

This should fulfill your request.
What it does:
Pos 1 - Neck Pos 2 - Both in parallel Pos 3 - Both in series Pos 4 - Bridge
Note the "extra feature" of shorting the Neck pickup when it is not selected. Since the pup is always connected to the controls (and thus to the output line), and since it's not grounded in Pos 4, there's a slight chance of it picking up some hum, and sending it along to the output - it acts like an antenna. In theory, the extra wire short circuits the Neck pickup, which should reduce or eliminate hum while it's not selected.
HTH
EDIT: I just re-read your opening post, and realized that you want a different "firing order". No problem, but just for the learning experience, I'm gonna let you redraw the diagram to fit your needs. If you wish, you can post it here and we'll check it for you.
sumgai
|
|
|
|
Post by merseymale on Mar 13, 2018 9:08:10 GMT -5
-g u l p!-
OK, will give it a go!
Thanks!
|
|
