Post by txspecial81strat on Nov 15, 2020 22:33:25 GMT -5

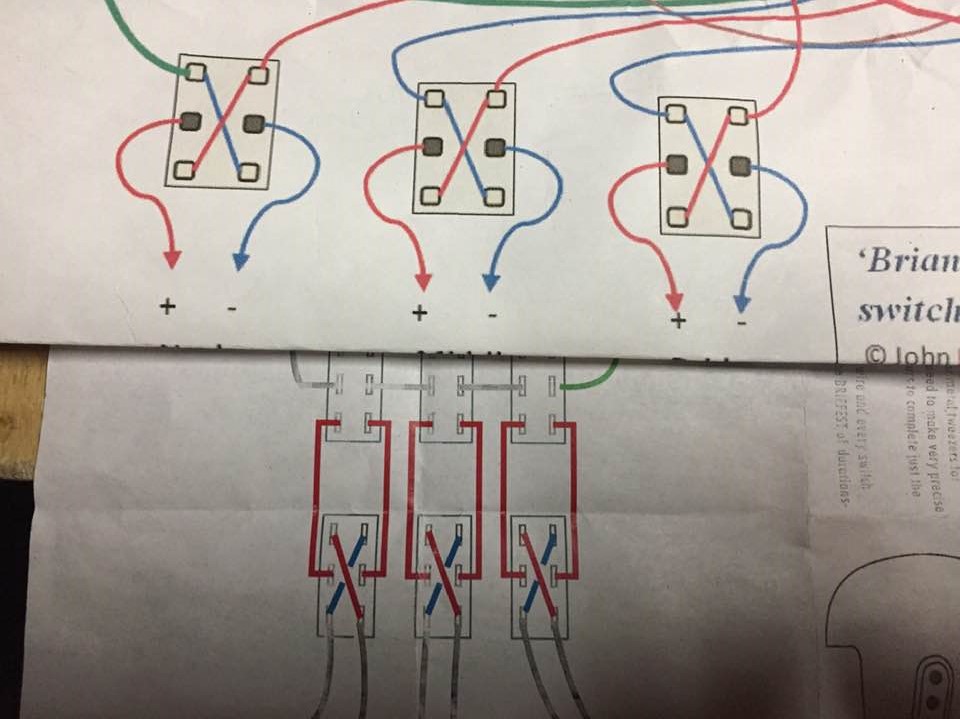

 I am trying to highlight the phase switches on these red special diag. As you see the way the input output of the pickups vs the switch are wired differently. Is this the more than one way to skin a cat" way of accomplishing the same thing or am i missing on something. Will they function the same? bottom diagram is 3 on off and 3 phase swiches al in series. top is a drawing to add the series/parallel switch |
|
|
|
Post by JohnH on Nov 16, 2020 4:17:12 GMT -5
Its as you noted. With phase switches it doesn't matter if the pickup is to the two middle lugs, or to the outer lugs with the X'ed wires, with output from the others. Either way, what comes in goes out either in the same phase, or reversed.
|
|
|
|
Post by newey on Nov 16, 2020 6:53:19 GMT -5
Sorry, txspecial, I moved this thread to general wiring as it didn't belong in tone controls. Although the question has been "asked and answered" anyway.
|
|
