Post by markuser on Mar 20, 2021 19:57:00 GMT -5
What I am looking for is stated. A wiring diagram for the SSS Stratocaster with 3 push pulls. 1 Vol, 2 tone. I know how to do the Phase and Series. I think. How would I wire the tone to be completely bypassed?
This is the closest diagram I could find for what I am looking for. Can SW1 be modified to be a tone bypass?
Thank you.
|
|
|
|
Post by newey on Mar 20, 2021 21:31:44 GMT -5
Can SW1 be modified to be a tone bypass? Probably. We'd have to work up a diagram (if you need one), but basically, the wiring to the SW-1 switch would all be removed and the volume pot wired to output as is standardly done. One pole of the SW-1 would switch between connecting the bridge tone pot and connecting straight to the volume pot. The other pole of SW-1 would do the same with the middle tone pot. Looking at the diagram, you would "break" the bridge tone connection at the dark green wire running from the 5-way switch to SW-3, and "break" the middle tone connection at the light green wire attached to the tone pot at SW-2. |
|
markuser
Apprentice Shielder
Where has the time gone, baby its all wrong..
Posts: 49
Likes: 0
|
Post by markuser on Mar 20, 2021 21:46:27 GMT -5

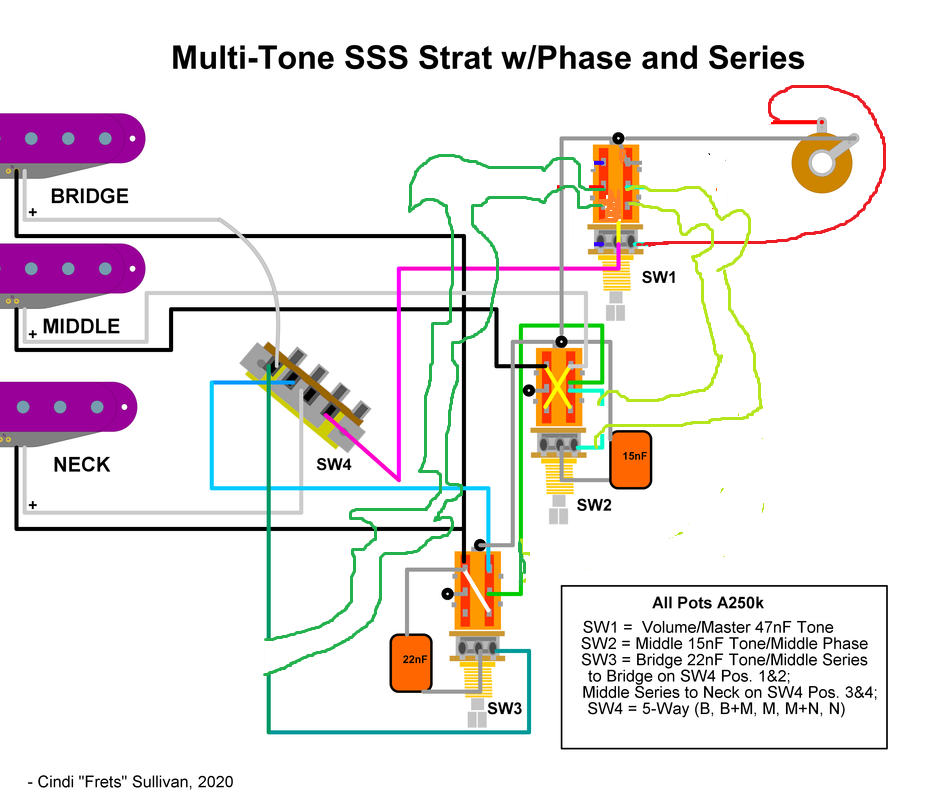

Ok. Thank you. This is what I imagine. Please correct my visualization.
 |
|
markuser
Apprentice Shielder
Where has the time gone, baby its all wrong..
Posts: 49
Likes: 0
|
Post by markuser on Mar 21, 2021 11:32:01 GMT -5
What is meant by straight to the vol pot?
Am I close? The top pegs on SW1 push/pull should they be open? or linked? or grounded?
|
|
|
|
Post by newey on Mar 21, 2021 13:23:13 GMT -5
What is meant by straight to the vol pot? Poorly worded on my part. By that, I just meant bypassing the tone pots. While you disconnected the correct wire for the bridge pickup, I meant the light green wire at SW-2 for the mid tone, it runs from the right-hand center lug of the phase switch (SW-2) to the mid tone pot. My fault for not being more specific. Reconnect the darker green wire the way it was, and make the break at the light green wire. No need to ground the wires at SW-1 or to connect the upper lugs together. All we are doing is disconnecting the "signal in" to both tone pots. They will remain connected to ground but that won't matter, no signal is going to them. And, as always, let's try to get someone else to validate this just to be sure . . . |
|
markuser
Apprentice Shielder
Where has the time gone, baby its all wrong..
Posts: 49
Likes: 0
|
Post by markuser on Mar 21, 2021 16:23:20 GMT -5

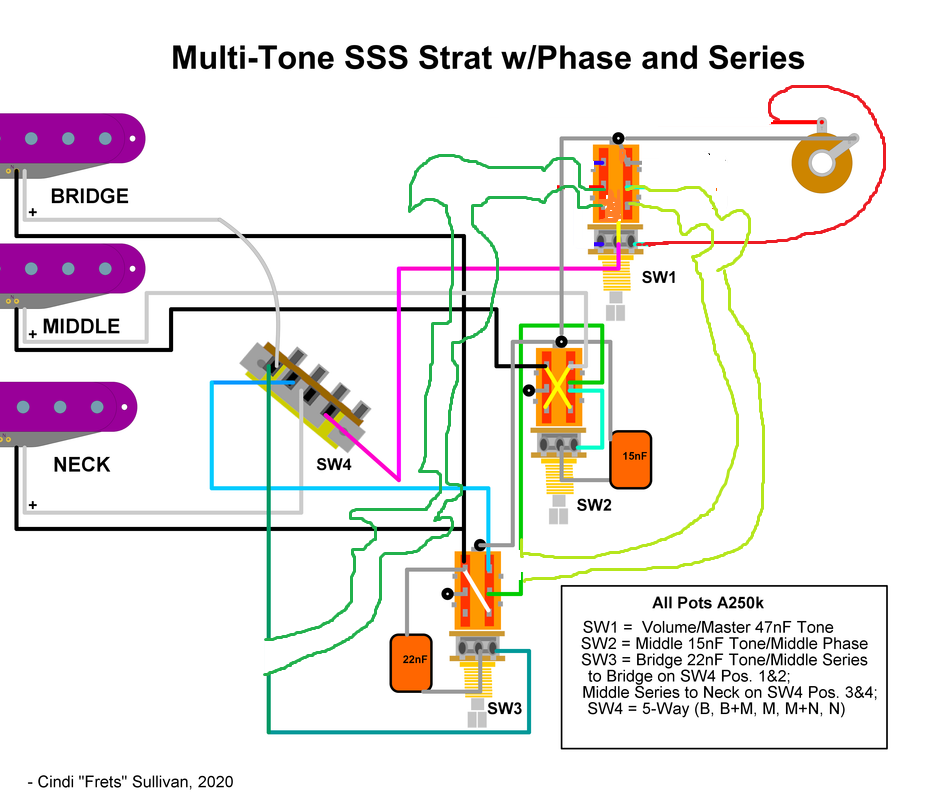

OK. This moves the breaking point to the same area for both pots, which is understandable.
 |
|
|
|
Post by newey on Mar 21, 2021 22:06:10 GMT -5
Yeah, I think that's got it, but again, let's get a second opinion, make sure I'm reading all this switching correctly.
|
|
