Post by frets on Apr 8, 2021 15:06:30 GMT -5
Hi John😸,

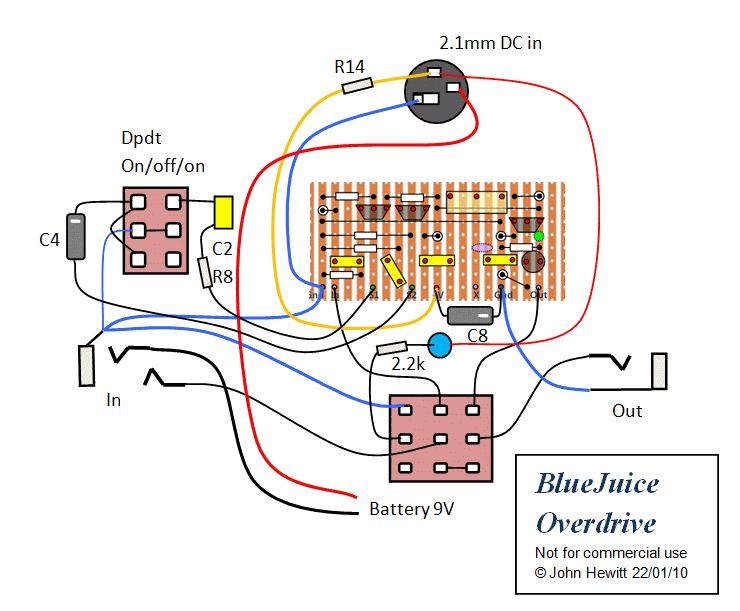

I wanted to Veroboard the circuit and found this diagram without identifiers. Is there an updated one? Thanks!
|
|
|
|
Post by frets on Apr 8, 2021 15:09:16 GMT -5
This one  |
|
|
|
Post by JohnH on Apr 8, 2021 16:40:58 GMT -5
hi frets
The Vero layout that I used is the same as in the first diagram in the thread, and doesn't change for the later version with a dual-ganged gain pot instead of the 3-position toggle. The parts that make the difference are all off-board so I could change them. I used vero-pins to make connection points to these places. I liked the second version better but you can try variations.
|
|
