Ovation Preacher circa 1974

[ssstonelover]

Kind of a rare bird. I had to work on one the past few days and it had me coming and going due to the mono and stereo inputs, the unusual design choices etc.
I thought I'd share it as info is hard to come by for it.

Wiring Diagram




Official Schematic



Official Spec. info

[ssstonelover]

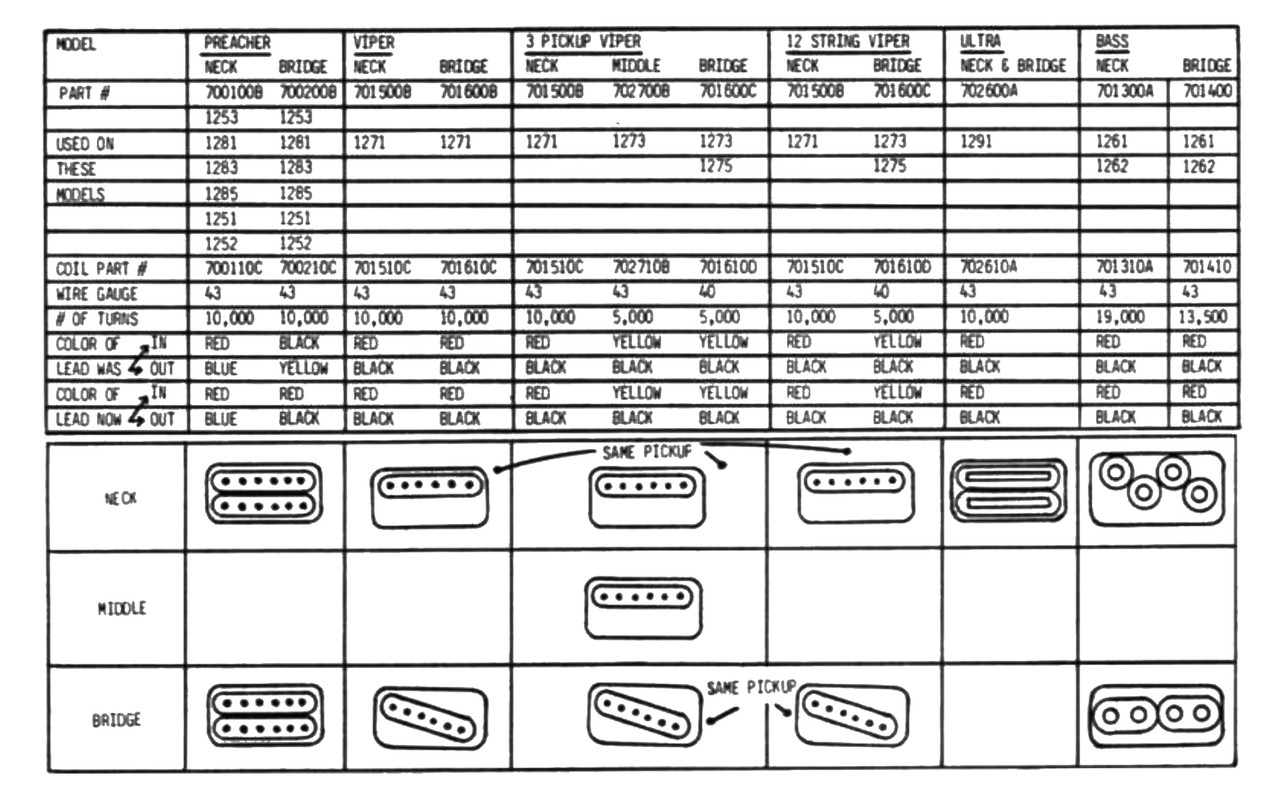

I realized the drawing of the mono plug is a bit confusing, so especially in the area of that plug I've cleaned up the drawing, plus added info for stereo wiring since that is a bit uncommon
